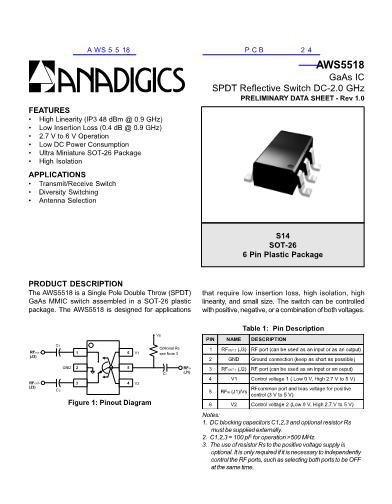

AWS5518
GaAs IC
SPDT Reflective Switch DC-2.0 GHz
PRELIMINARY DATA SHEET - Rev 1.0
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
High Linearity (IP3 48 dBm @ 0.9 GHz)
Low Insertion Loss (0.4 dB @ 0.9 GHz)
2.7 V to 6 V Operation
Low DC Power Consumption
Ultra Miniature SOT-26 Package
High Isolation
Transmit/Receive Switch
Diversity Switching
Antenna Selection
APPLICATIONS
S14
SOT-26
6 Pin Plastic Package
PRODUCT DESCRIPTION
The AWS5518 is a Single Pole Double Throw (SPDT)
GaAs MMIC switch assembled in a SOT-26 plastic
package. The AWS5518 is designed for applications
that require low insertion loss, high isolation, high
linearity, and small size. The switch can be controlled
with positive, negative, or a combination of both voltages.
Table 1: Pin Description
Vs
C
3
RF
OUT1
(J2)
GND
1
6
V1
Optional Rs
see Note 3
PIN
1
2
NAME
DESCRIPTION
RF
OUT 2
(J3) RF port (can be used as an input or as an output)
GND
Ground connection (keep as short as possible)
2
5
C
1
RF
IN
(J1)
3
4
5
RF
OUT 1
(J2) RF port (can be used as an input or an ouput)
V1
RF
IN
(J1)/Vs
V2
Control voltage 1 ( Low 0 V, High 2.7 V to 5 V)
RFcommon port and bias voltage for positive
control (3 V to 5 V)
Control voltage 2 (Low 0 V, High 2.7 V to 5 V)
RF
OUT2
(J3)
3
C
2
4
V2
Figure 1: Pinout Diagram
6
Notes:
1. DC blocking capacitors C1,2,3 and optional resistor Rs
must be supplied externally.
2. C1,2,3 = 100 pF for operation >500 MHz.
3. The use of resistor Rs to the positive voltage supply is
optional. It is only required if it is necessary to independently
control the RF ports, such as selecting both ports to be OFF
at the same time.
03-2002
