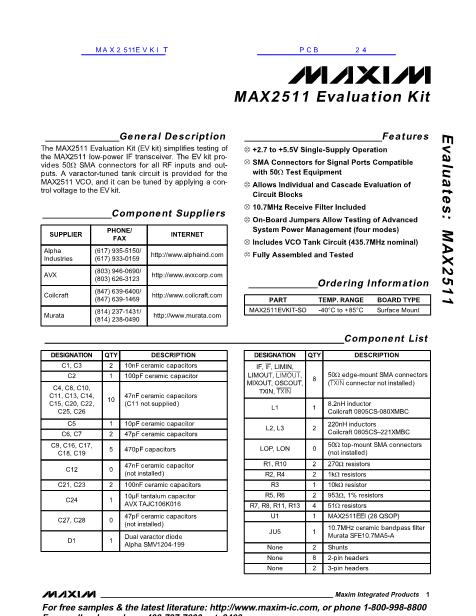

MAX2511 Evaluation Kit
_______________General Description
The MAX2511 Evaluation Kit (EV kit) simplifies testing of
the MAX2511 low-power IF transceiver. The EV kit pro-
vides 50鈩?SMA connectors for all RF inputs and out-
puts. A varactor-tuned tank circuit is provided for the
MAX2511 VCO, and it can be tuned by applying a con-
trol voltage to the EV kit.
____________________________Features
o
+2.7 to +5.5V Single-Supply Operation
o
SMA Connectors for Signal Ports Compatible
with 50鈩?Test Equipment
o
Allows Individual and Cascade Evaluation of
Circuit Blocks
o
10.7MHz Receive Filter Included
o
On-Board Jumpers Allow Testing of Advanced
System Power Management (four modes)
o
Includes VCO Tank Circuit (435.7MHz nominal)
o
Fully Assembled and Tested
Evaluates: MAX2511
______________Component Suppliers
SUPPLIER
Alpha
Industries
AVX
Coilcraft
Murata
PHONE/
FAX
(617) 935-5150/
(617) 933-0159
(803) 946-0690/
(803) 626-3123
(847) 639-6400/
(847) 639-1469
(814) 237-1431/
(814) 238-0490
INTERNET
http://www.alphaind.com
http://www.avxcorp.com
______________Ordering Information
http://www.coilcraft.com
http://www.murata.com
PART
MAX2511EVKIT-SO
TEMP. RANGE
-40擄C to +85擄C
BOARD TYPE
Surface Mount
_____________________________________________________________Component List
DESIGNATION
C1, C3
C2
C4, C8, C10,
C11, C13, C14,
C15, C20, C22,
C25, C26
C5
C6, C7
C9, C16, C17,
C18, C19
C12
C21, C23
C24
C27, C28
D1
QTY
2
1
DESCRIPTION
10nF ceramic capacitors
100pF ceramic capacitor
47nF ceramic capacitors
(C11 not supplied)
10pF ceramic capacitor
47pF ceramic capacitors
470pF capacitors
47nF ceramic capacitor
(not installed)
100nF ceramic capacitors
10碌F tantalum capacitor
AVX TAJC106K016
47pF ceramic capacitors
(not installed)
Dual varactor diode
Alpha SMV1204-199
DESIGNATION
IF,
IF,
LIMIN,
LIMOUT,
LIMOUT,
MIXOUT, OSCOUT,
TXIN,
TXIN
L1
L2, L3
LOP, LON
R1, R10
R2, R4
R3
R5, R6
R7, R8, R11, R13
U1
JU5
None
None
None
QTY
DESCRIPTION
50鈩?edge-mount SMA connectors
(TXIN connector not installed)
8.2nH inductor
Coilcraft 0805CS-080XMBC
220nH inductors
Coilcraft 0805CS鈥?21XMBC
50鈩?top-mount SMA connectors
(not installed)
270鈩?resistors
1k鈩?resistors
10k鈩?resistor
953鈩? 1% resistors
51鈩?resistors
MAX2511EEI (28 QSOP)
10.7MHz ceramic bandpass filter
Murata SFE10.7MA5-A
Shunts
2-pin headers
3-pin headers
8
10
1
2
0
2
2
1
2
4
1
1
2
8
2
1
2
5
0
2
1
0
1
________________________________________________________________
Maxim Integrated Products
1
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
For small orders, phone 408-737-7600 ext. 3468.
