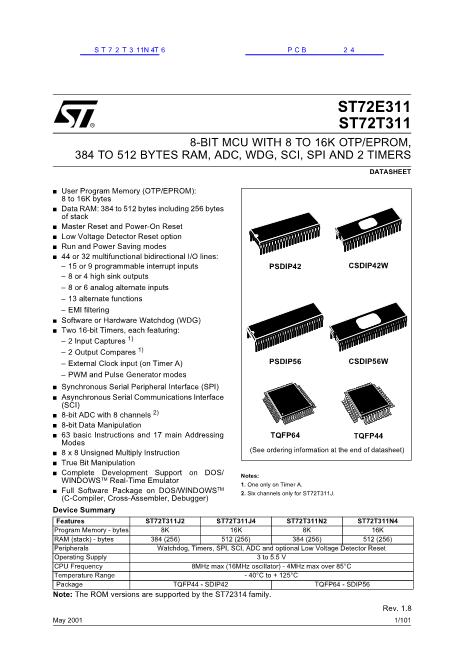

ST72311
8-BIT MCU WITH 8 TO 16K ROM/OTP/EPROM,
384 TO 512 BYTES RAM, ADC, WDG, SCI, SPI AND 2 TIMERS
PRELIMINARY DATA
s
s
s
s
s
s
s
s
User Program Memory (ROM/OTP/EPROM):
8 to 16K bytes
Data RAM: 384 to 512 bytes including 256 bytes
of stack
Master Reset and Power-On Reset
Low Voltage Detector Reset option
Run and Power Saving modes
44 or 32 multifunctional bidirectional I/O lines:
鈥?15 or 9 programmable interrupt inputs
鈥?8 or 4 high sink outputs
鈥?8 or 6 analog alternate inputs
鈥?13 alternate functions
鈥?EMI filtering
Software or Hardware Watchdog (WDG)
Two 16-bit Timers, each featuring:
鈥?2 Input Captures
1)
鈥?2 Output Compares
1)
鈥?External Clock input (on Timer A)
鈥?PWM and Pulse Generator modes
Synchronous Serial Peripheral Interface (SPI)
Asynchronous Serial Communications Interface
(SCI)
8-bit ADC with 8 channels
2)
8-bit Data Manipulation
63 basic Instructions and 17 main Addressing
Modes
8 x 8 Unsigned Multiply Instruction
True Bit Manipulation
Complete Development Support on DOS/
WINDOWS
TM
Real-Time Emulator
Full Software Package on DOS/WINDOWS
TM
(C-Compiler, Cross-Assembler, Debugger)
PSDIP42
CSDIP42W
PSDIP56
CSDIP56W
s
s
s
s
s
TQFP64
TQFP44
s
s
s
Notes:
1.
One only on Timer A.
2.
Six channels only for ST72311J.
s
Device Summary
Features
Program Memory - bytes
RAM (stack) - bytes
Peripherals
Operating Supply
CPU Frequency
Temperature Range
Package
ST72311J2
ST72311J4
ST72311N2
ST72311N4
8K
16K
8K
16K
384 (256)
512 (256)
384 (256)
512 (256)
Watchdog, Timers, SPI, SCI, ADC and optional Low Voltage Detector Reset
3 to 6 V
8 MHz max (16 MHz oscillator)
- 40擄C to + 85擄C
TQFP44 - SDIP42
TQFP64 - SDIP56
Rev. 1.4
September 1998
This is preliminary information on a new product in development or undergoing evaluation. Details are subject to change without notice.
1/94
1
