XC74UL04AA Datasheet

  • XC74UL04AA

  • CMOS Logic

  • Torex

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

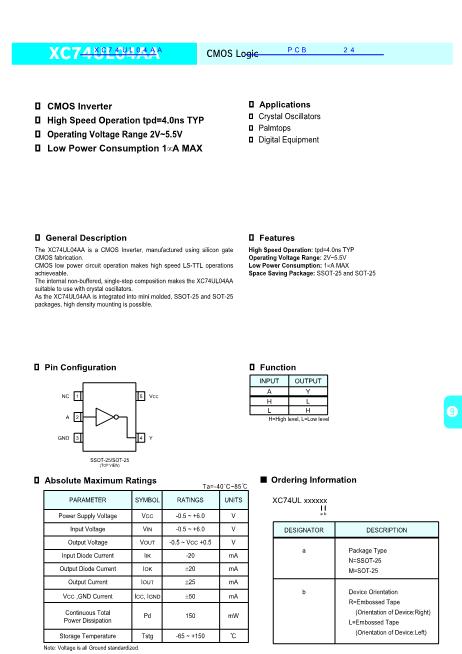

XC74UL04AA
CMOS Logic
ETR1304_002
鈻燝ENERAL
DESCRIPTION
The XC74UL04AA is a CMOS inverter, manufactured using silicon gate CMOS fabrication.
CMOS low power circuit operation makes high speed LS-TTL operation achievable.
The internal circuit is composed of inverter and buffer, which provide high noise immunity and stable output.
As the XC74UL04AA is integrated into mini molded, SSOT-25 and SON-6 package, high density mounting is possible.
鈻燗PPLICATIONS
鈼廝almtops
鈼廌igital
equipment
鈻燜EATURES
High Speed Operation
: tpd = 2.05ns(TYP.)
Operating Voltage Range
: 2V ~ 5.5V
Low Power Consumption
: 1渭A (MAX.)
CMOS Inverter
Ultra Small Packages
* Under Development
: SSOT-25, SON-6*
鈻燩IN
CONFIGURATION
NC
GND
Vcc
Y
A
鈻燜UNCTIONS
INPUT
A
H
L
H=High level
L=Low level
OUTPUT
Y
L
H
SSOT-25
錛圱OP
VIEW錛?/div>
XC74UL04AAN
SON-6
錛圱OP
VIEW錛?/div>
XC74UL04AAR
鈻燗BSOLUTE
MAXIMUM RATINGS
PARAMETER
Supply Voltage
Input Voltage
Output Voltage
Input Diode Current
Output Diode Current
Output Current
V
CC
,GND Current
Power Dissipation
SSOT-25
錛?/div>
1
Ta=-40鈩儈85鈩?/div>
SYMBOL
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OUT
I
CC
,I
GND
Pd
Tstg
RATINGS
-0.5~+6.0
-0.5~+6.0
-0.5~V
CC
+0.5
-20
鹵20
鹵25
鹵50
150
200
-65~+150
UNITS
V
V
V
mA
mA
mA
mA
mW
鈩?/div>
SON-6
錛?/div>
2
Storage Temperature Range
Voltage is all ground standardized.
錛?錛塗a=55鈩?/div>
錛?錛塗a=25鈩?/div>
1/4
